Tessuto filtrante di PTFE
Created with Pixso.

PPS P84 PP PE PTFE Nomex Filter Cloth

PPS P84 PP PE PTFE Nomex Filter Cloth

Moq: 100
prezzo: 5
Informazioni dettagliate
Modello n.:
PH00014
Tipo:
Sacchetto filtro della Camera
Forma del foro:
Girare
Metodo di produzione:
Panno di Non fabbricazione
Tipo di carta:
Qualitativo
Temperatura di lavoro:
240
Anti acido:
Bene
Anti alcalino:
Eccellente
larghezza:
Da 100 mm a 2200 mm
Pacchetto di trasporto:
Imballaggio standard per l'esportazione
Specifica:
1m x 1m x 1m
Marchio:
RUIQI
Origine:
Cina
Codice SA:
5911900
Capacità produttiva:
50000PCS/settimana
Evidenziare:

PPS P84 filter cloth for industrial use

,

PTFE filter cloth with high durability

,

Nomex filter cloth for high temperatures

Descrizione del prodotto

PPS / P84/PP/PE /PTFE /Nomex needle punched filter cloth for industry dust collector parts
PPS high temperature filter material , we are import PPS fiber from Japan,our PPS felt is international standard quality level, as the Thermoplasticity of pps Fiber , we  use Imported automatic hot melt technology,Produced pps hot melt bag .The bottom, side and collar of the filter bag are welded by hot melt ,Avoid the traditional seam filter bag due to the pinhole ,Side leakage caused by uneven material

The problem of fiber shedding was solved by this kind of complete welding filter bag.High precision wireless seam filter bag with digital same position multipoint welding equipment,Ensure that welding at each point is the strongest and most consistent.


material PPS+PPS scrim PPS+ FG scrim
weight(g/m2) 450 500 550 >800
Thickness  (mm) 1.6 1.8 1.9 2.0
Air permeability (L/m2/S) (m3/m2/min) 150
18
200
15
250
12
200~300
8-15
Tensile strength (N/5×20cm) warp >1150 >1200 >1200 >2000
weft >1200 >1300 >1400 >2000
Tensile elongation  (%) warp <30 <30 <30 <10
weft <30 <30 <30 <10
Broke strength (Mpa/min) 2.7 2.60 2.45 3.10
Working temperature (ºC) ≤190 ≤190
Peak temperature (ºC) 232 232
Anti Acidic excellent excellent
Anti alkaline excellent excellent
abradability excellent excellent
hydrolisis excellent excellent
Finishing treatment Calendering , singeing Calendering , singeing

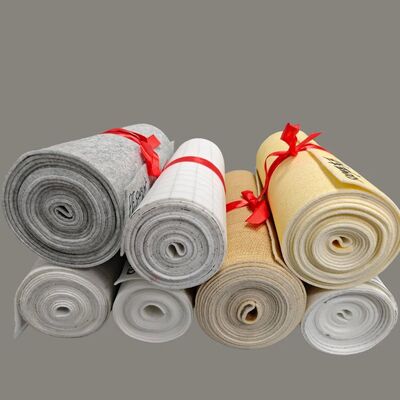

PPS P84 PP PE PTFE Nomex Filter Cloth 0

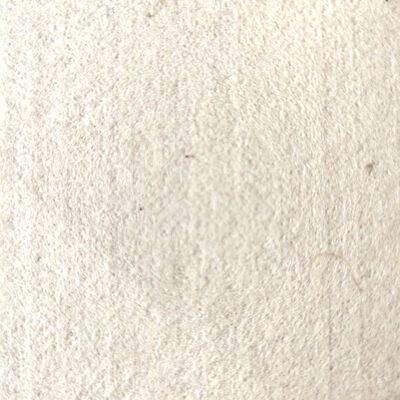

PPS P84 PP PE PTFE Nomex Filter Cloth 1

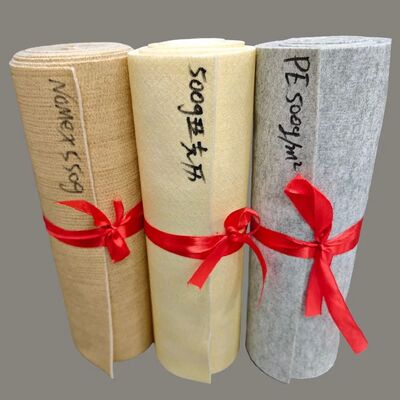

PPS P84 PP PE PTFE Nomex Filter Cloth 2

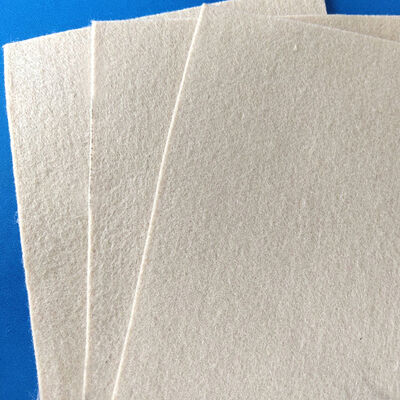

PPS P84 PP PE PTFE Nomex Filter Cloth 3

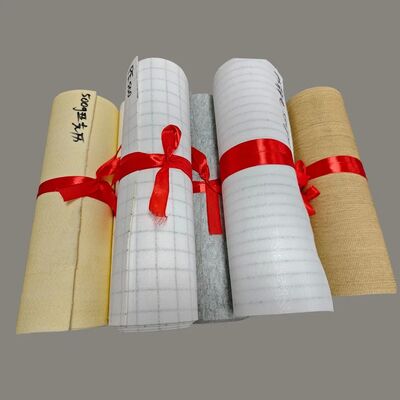

PPS P84 PP PE PTFE Nomex Filter Cloth 4
Applications:

Coal-fired boilers bag houses calciners/catalysts
Municipal solid waste boilers and waste incinerator
Electric power plant electrolysis and other specialty membranes
Waste to energy Iron and nonferrous metal industry


Finishing treatment :Ruiqi filter can according different working condition do  Various functional processes : water and oil proof , PTFE dipping , PTFE coated.
